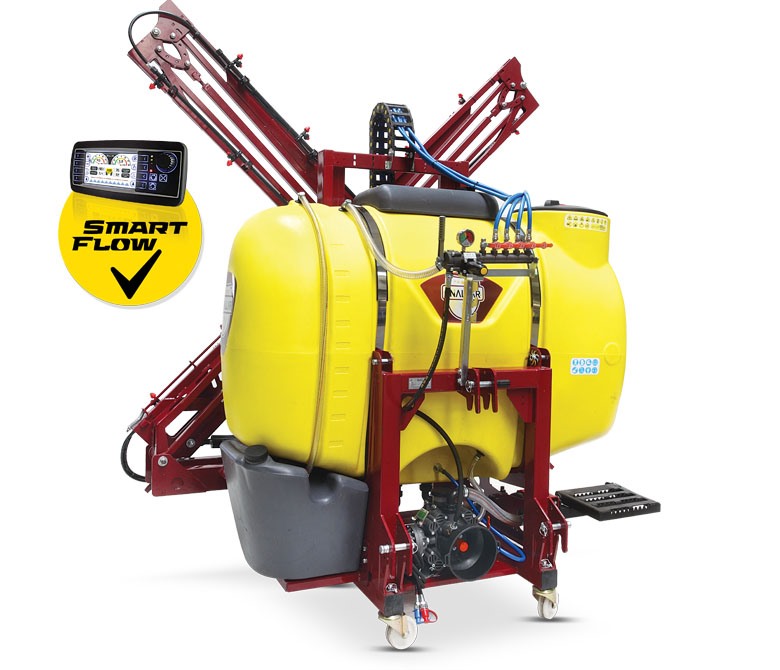

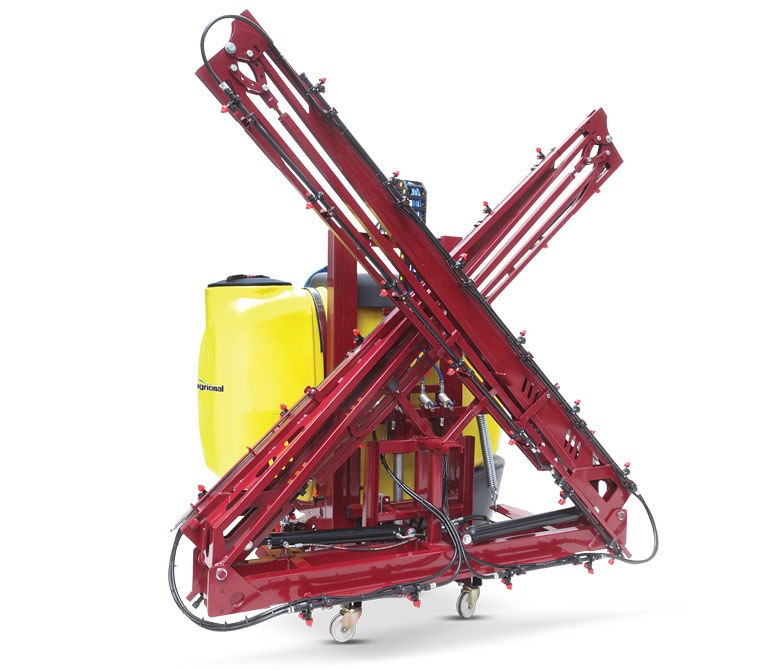

ALFA-D

GENERAL FEATURES

PICTURE GALLERY

VIDEO GALLERY

DESIGN DETAILS

TECHNICIAL SPECIFICATIONS

PRODUCT CATALOG

• Clean water tank independent from main tank.

• Hose holder that ensures hoses to be organized between control and arm.

• Control that provides homogeneous and precise spraying norm.

• Float system that measures amount of water remaining in the tank precisely.

• Filter system that can be cleaned easily and enables fast filling.

• Draining system that quickly drains the water remaining in the tank after spraying.

• Spraying pump with 4 membranes having the best performance.

• Tank washing system that allows the tank to be washed after spraying.

• Fiber system that enables arm to be controlled from hydraulic control easily.

• Durable and cleanable nozzle.

• Reflector system that allows the machine to be noticed in traffic.

Pressure filter that increases spraying efficiency by filtering pressurized water.


Model ALFA D 8ALFA D 10ALFA D 13
Material of Tank PolyethylenePolyethylenePolyethylene
Capacity of Tank Lt8001000800
Pump Model C 96C 96C 96
Pump Flowl/min969696
Pump PressureBar505050
Control Panel OSR 40-5OSR 40-5OSR 40-5
Work Widthm151515
Nozzle Type Conical brass nozzle
Number of Nozzles 303030
Distance Between Nozzlescm505050
Boom Height Adjustment Hydraulic
Boom's Folding Adjustment
Required Tractor PowerHP70-8070-8070-80
Operating Speedr/min540540540
Weightkg620650665
Lengthcm250250250
Widthcm185185185
Height cm280280280
< >
